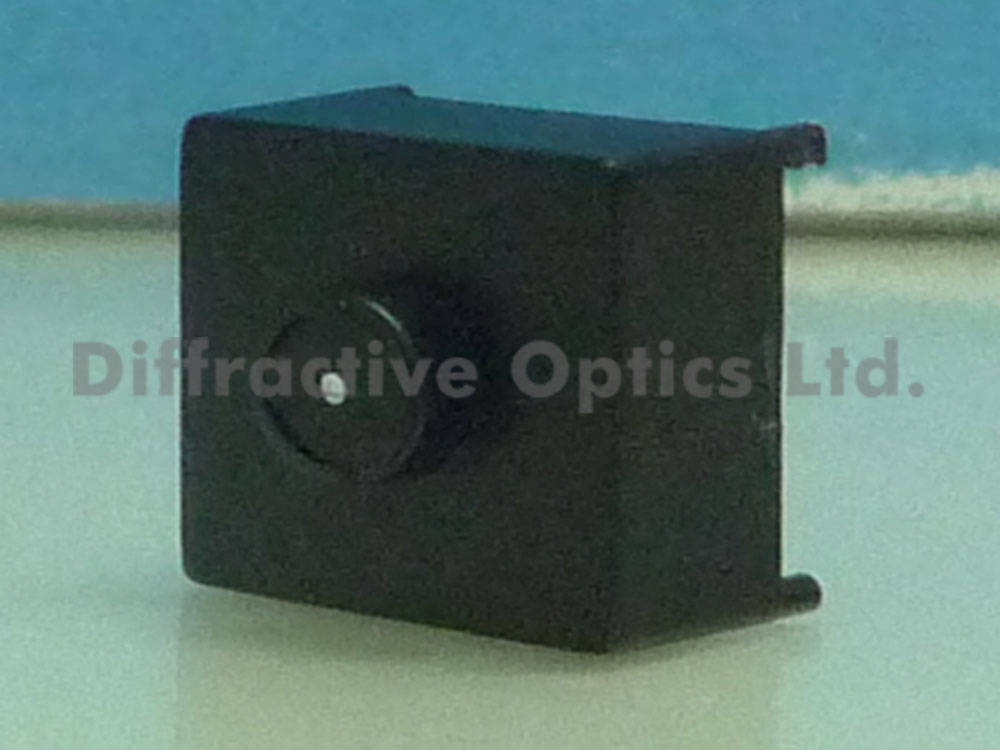

Product Name：P3106 Endoscopic Lens Module

Product Introduction：

Product Description / 产品描述：

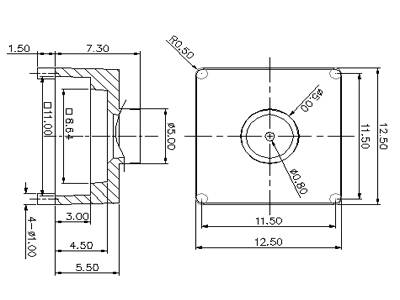

Size / 尺寸:	12.5×12.5×7.3mm
Tolerance / 公差:	±0.1mm
Distortion / 变型:	Low
Lens Material / 材料:	Optical Grade PMMA
Construction / 结构:	Ultra high precision of diffractive & aspheric optical profile by diamond turning machine
Operating Temperature /操作温度:	-20℃ to +80℃
Storage Temperature /储存温度:	-20℃ to +80℃

Optical Specification / 光学规格：
Effective Focal Length / 有效焦距:	3.9mm
Field of View / 视野范围:	40°
Aperture / 孔径:	6.5
Sensor / 芯片:	1/3" CCD/CMOS

Product Application / 产品应用：
Application / 应用:	Endoscope Lens Module / 内窥镜头模组
