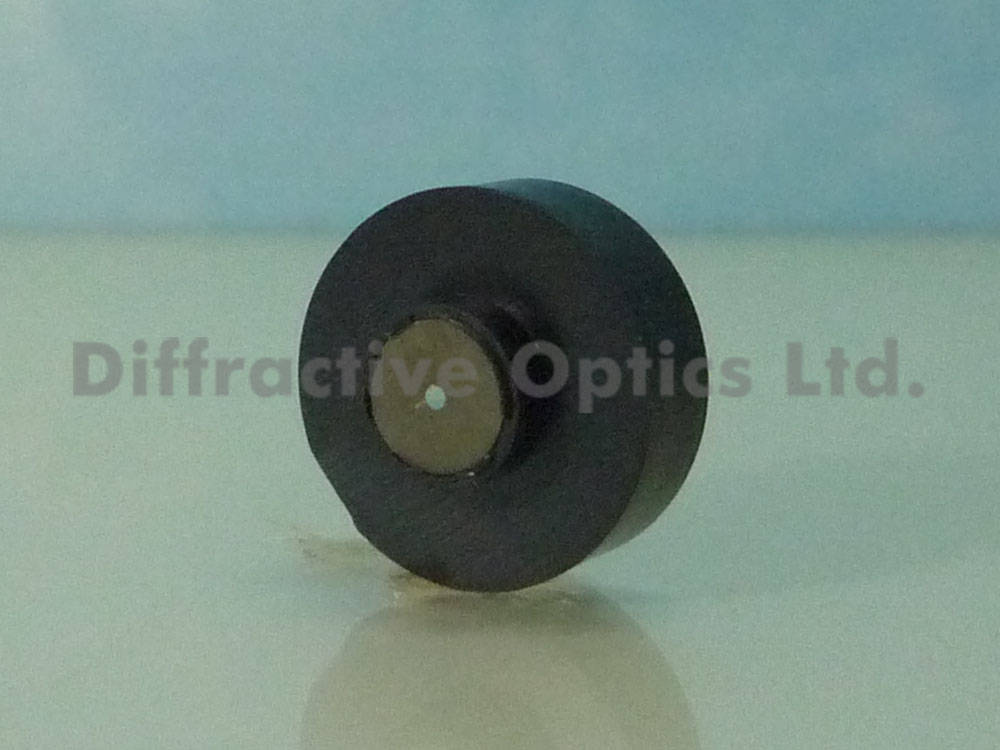

Product Name：P2150 Endoscopic Lens Module

Product Introduction：

Product Description / 产品描述：

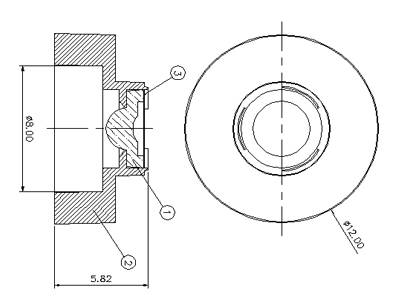

Size / 尺寸:	Ø12×5.82mm
Tolerance / 公差:	±0.1mm
Distortion / 变型:	Low
Lens Material / 材料:	Optical Grade PMMA
Construction / 结构:	2 elements aspheric lenses
Operating Temperature / 操作温度:	-20℃ to +80℃
Storage Temperature / 储存温度:	-20℃ to +80℃

Optical Specification / 光学规格：
Effective Focal Length / 有效焦距:	3.3mm
Field of View / 视野范围:	40°
Aperture / 孔径:	4.6
Uniformity / 照像均匀度:	﹥70%

Product Application / 产品应用：
Application / 应用:	Medical Endoscope / 医疗内窥镜头
