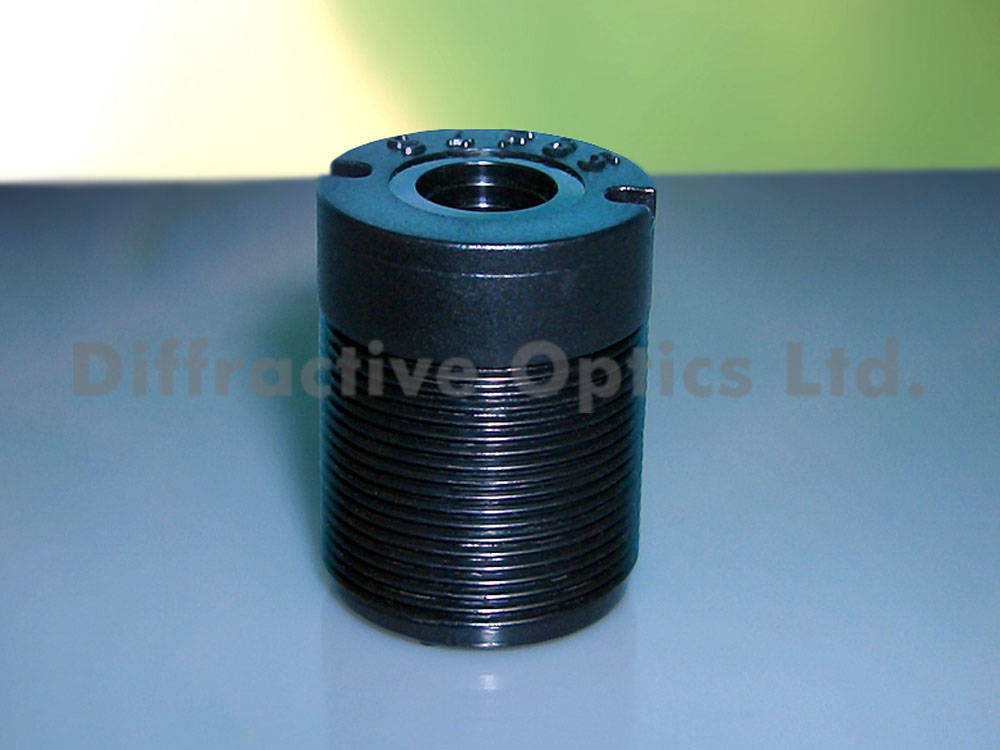

Product Name：P442 Scanning Lens Module

Product Introduction：

Product Description / 产品描述：

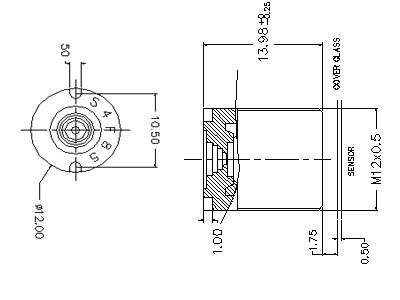

Size / 尺寸:	12x0.5x14mm
Tolerance / 公差:	±0.1mm
Lens Material / 材料:	Precision molded in optical grade PMMA for thermal stability and system durability
Distortion / 变型:	< 0.1%
Construction / 结构:	Ultra high precision of diffractive and aspheric optical profile by diamond turning machine
Operating Temperature /操作温度:	-20℃ to +80℃
Storage Temperature /储存温度:	-20℃ to +80℃

Optical Specification / 光学规格：
Focal Length / 焦距:	9.0mm
Aperture / 孔径:	8.5
IR Cut off Filter / IR滤光片:	T=50%@685nm
Relative Illumination / 均匀度:	56%
Max Image Circle / 最大图像圆周:	Ø12mm
Diagonal FOV / 对角线可视角度:	153mm 133mm Object Distance for Diagonal 11.47mm

Product Application / 产品应用：
Application / 应用:	Barcode Scanner/条码扫描器
